This is Part 1 of the Magic Link System Design Series.

System Design is such a broad topic, with many different styles adopted by different people. It only became popular recently when it became a requirement during interviews for software engineering roles. This blog is not about tips & tricks for passing half-hour session interviews, but a more realistic take on building systems that lasts.

The basic study of system design is the understanding of component parts and their subsequent interaction with one another.
- Wikipedia

Every system is built to solve a problem faced by someone or a business, and people tend to lose sight of that when the team or organisation starts growing. This could be because of how workers are hired for a specific role within a problem but are not directed to solve the business problem. As it is human nature to want to suceed and improve, these individual workers start implementing and improving onto their individual areas in isolation, which Inevidently, results in creating a more complicated and messy system over time.

The heart of software is its ability to solve domain-related problems for its user.
- Eric Evans

That is where Domain Driven Design (DDD) comes in, as it brings the problem-solving focus back to the actual issue at hand. It starts by formalizing the language used by the domain-experts and stakeholders, such that engineers can actually use those terminologies during their design and implementation. This solves a huge communication gap between the non-technical and technical folks. As conversations regularly take place between stakeholders, DDD provides a framework for capturing important details in the domain. These details are also commonly known as Objects & Events in the software engineering world (more on that later).

I will not be diving deep into what DDD is in this blog, but will cherry-pick concepts from it to apply to my approach to System Design.

To give you a glimpse of what I am talking about, below is a simple System Design document leveraging DDD for building an authentication service for XYZ startup. These System Design documents are living documents that gets updated over time, and what is shown below is just a snapshot in the whole system life cycle.

XYZ Auth

Company XYZ requires a secure way to authenticate its users accessing its app. To keep costs low, and not be subjected to GDPR related policies, passwords cannot be stored within the system. Consulting with the Security Engineer in the team, he advises to use Magic Links as a quick and simple way to authenticate users.

DDD Strategic Design
DDD Tactical Design
Non-Functional Requirements
API Endpoints
Capacity Estimation
Cost Estimation

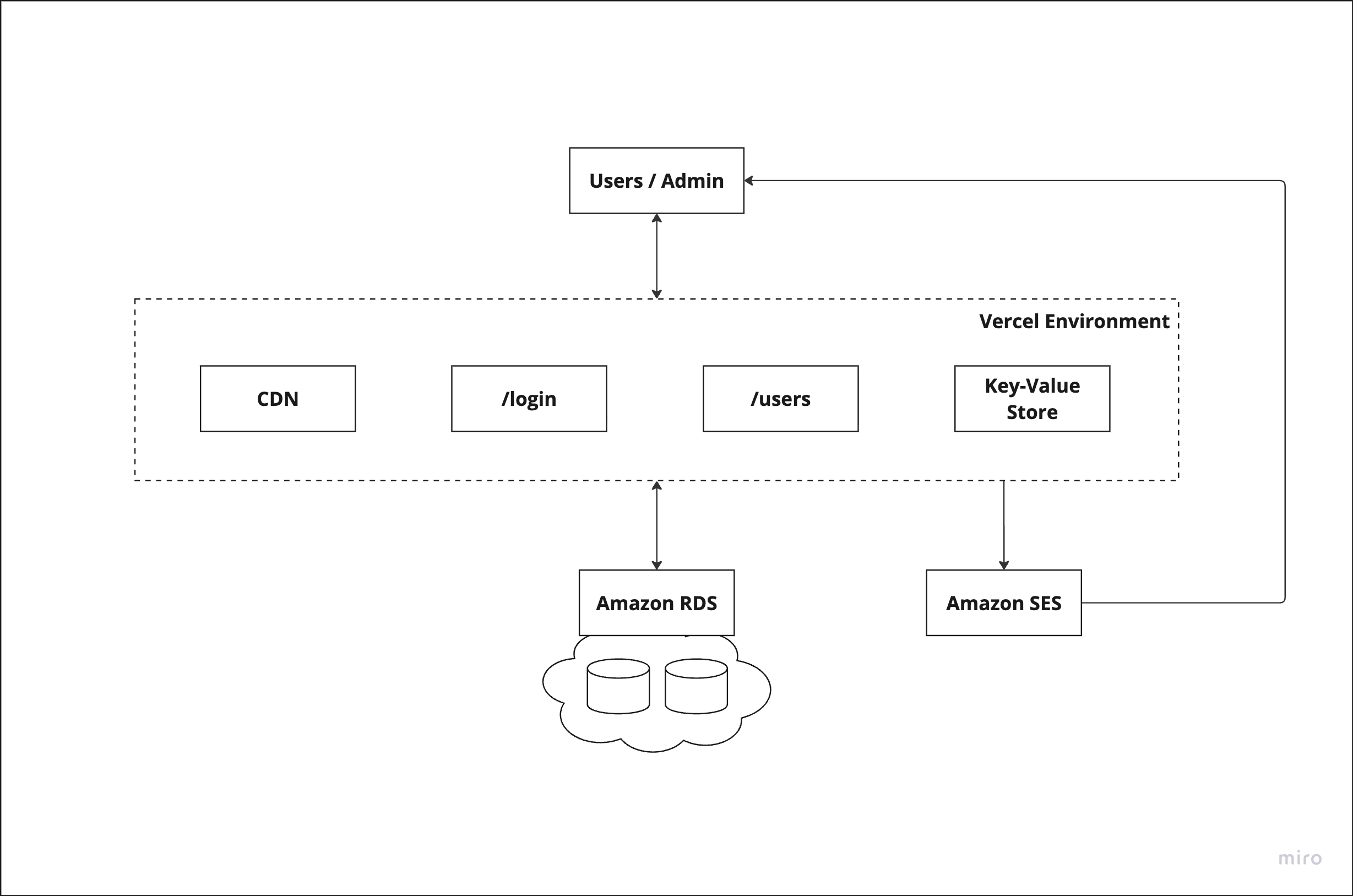

System Architecture

System Design

DDD Strategic Design

The goal of strategic design is to formalize the language between stakeholders and can be categorized into 3 categories: (1) Events; (2) Objects; (3) Transactions.

Events represent the past and act as the source of truth; they are stored in databases. Objects are models that represent the current state of the domain and are derived from the events that occur over time. Transactions work with objects within the domain to generate events that changes the various objects of the domain.

Conversations need to happen with the Domain Experts, and I personally use a simple Persona table to describe such conversations on what they expect the interaction will be like.

The expected interactions with XYZ Auth are as follows:

Persona	Interaction
User	User enters email and requests for Magic Link.
User	User clicks on Magic Link and navigates to the Home page of the App.
User	User clicks on expired / invalid Magic Link and navigates to the HTTP 401 page of the App.
Admin	Admin enters email and requests for Magic Link.
Admin	Admin clicks on Magic Link and navigates to the Admin App.
Admin	Admin adds Users to the system by entering their emails.
Admin	Admin removes Users from the system by deleting their emails.

The domain of XYZ Auth is as follows:

Events	Objects	Transactions
UserAdded	User	AddUser
UserRemoved		RemoveUser
UserRequestsMagicLink		RequestMagicLink
UserLogin		LoginUser

DDD Tactical Design

This section is where a software engineer provides technical artifacts such as ER diagrams or sequence diagrams.

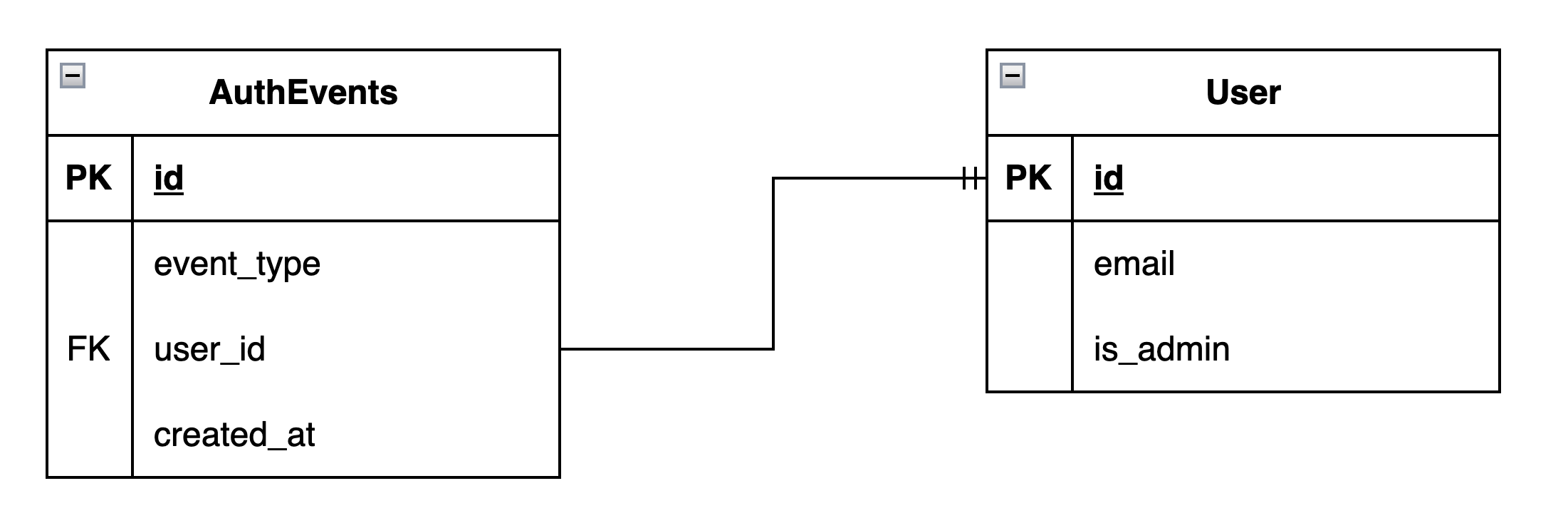

Based on the events and objects identified in the Strategic Design stage, the above Entity-Relationship diagram is drawn.

Non-Functional Requirements

Non-Functional requirements are tricky; and can very often be mixed up with the Domain requirements.

These are very important requirements that are not part of the domain.

The Magic Link will only work on the same browser that was used to generate the Magic Link. This is enforced using CSRF tokens.

API Endpoints

The endpoints are derived from transactions needed in the Strategic Design phase

POST /api/v1/login
POST /api/v1/login?magic={string}
POST /api/v1/users
POST /api/v1/users/{id}
GET /api/v1/users
GET /api/v1/users/{id}

Capacity Estimation (Data Storage)

Using the ER diagrams described in the Tactical Design stage, provide a back-off-the-envelope estimation of the storage / memory needed for an estimated number of users.

Referencing the data structures for Postgres, the estimation is as follows:

id: 16 bytes
event_type: 1 byte * size = 16 bytes
user_id: 16 bytes
created_at: 16 bytes
email: 128 bytes
is_admin: 1 byte

Hence, an AuthEvent is estimated to be at most (16 + 16 + 16 + 16 + 128 + 1) = 193 bytes.

With a 1GB Postgres instance, we can store approximately ~5.1 million auth events.

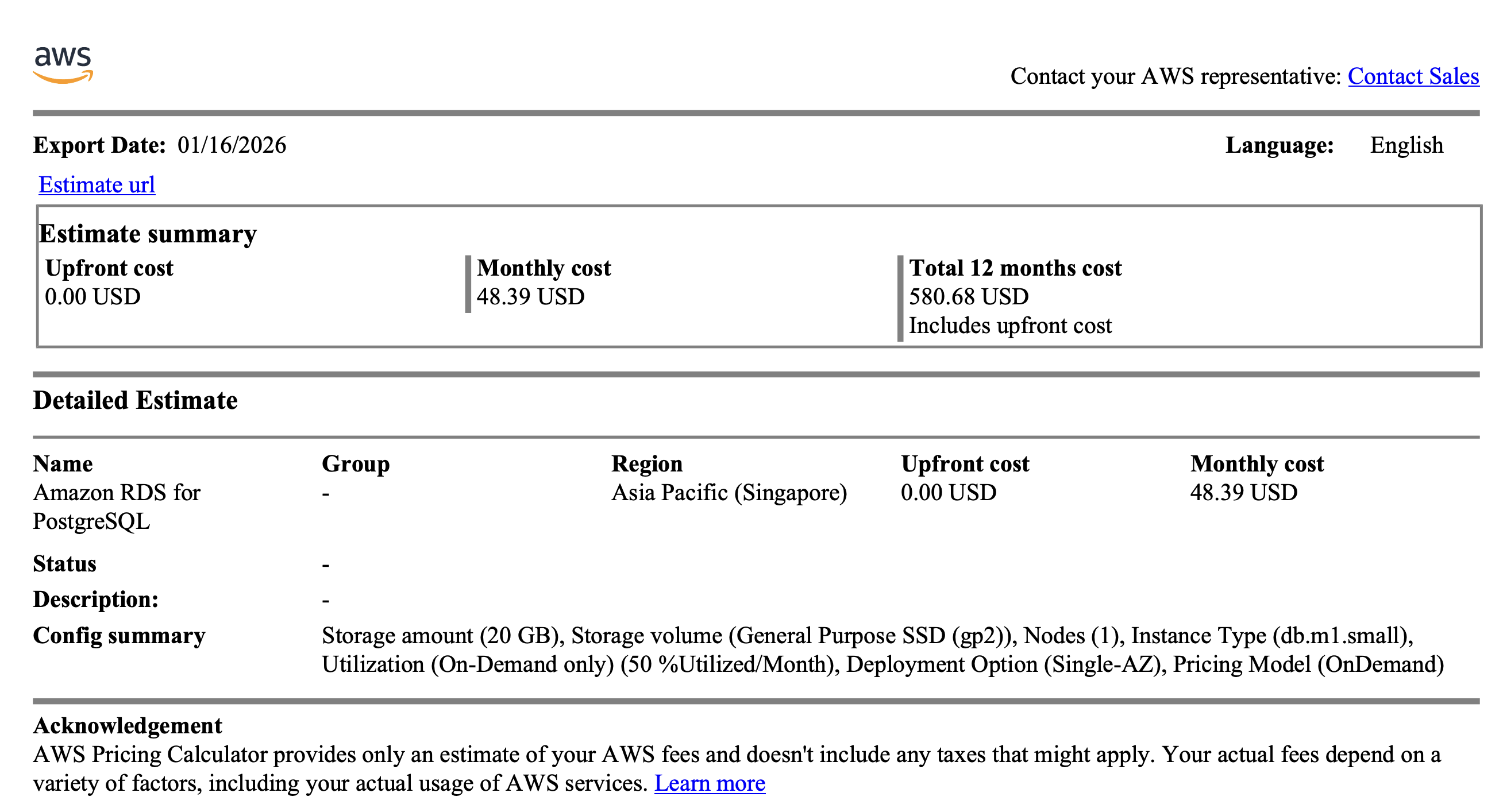

Cost Estimation

Based on the estimates done earlier, you can also estimate the cost of your design. Depending on your service provider, there may be calculators available to estimate the costs of the system.

AWS Calculator
